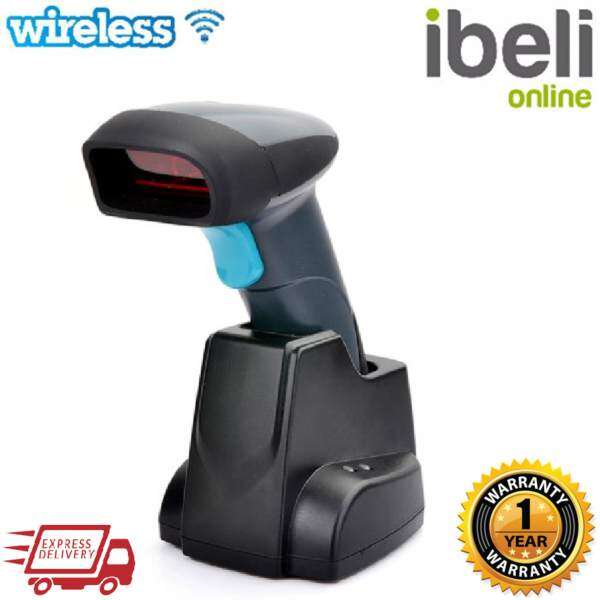

Wireless Laser Barcode Scanner with Charging Base Docking Station Malaysia

Wireless Laser Barcode Scanner with Charging Base Docking Station Malaysia

Category: Gadgets
Status: In stock
RM 195.00
Payment on delivery
RM 195.00

RM 197.00

RM 198.50

Van chuyen don gianSimple shipping
San pham chat luong High quality products
Ban hang toan quoc Nationwide sales
Thanh toan khi nhan hang Simple shipping

  • Using NXP MCU decoding microarrays, software super error correction
  • Automatic sleep, wake up one-button function, automatic power saving feature
  • Built-in ultra-stable income received antenna
  • CPU Precise control scanning speed of up to 260 times per second, the highest
  • The use of large-capacity industrial-grade cylindrical lithium polymer battery, you can use more than 48 hours
  • Dust shock and drop interference with high reliability 433 long-distance data transmission
  • Wireless base can use when stents can achieve continuous scanning gun features ​

Highlights

  • Using NXP MCU decoding microarrays, software super error correction
  • Automatic sleep, wake up one-button function, automatic power saving feature
  • Built-in ultra-stable income received antenna
  • CPU Precise control scanning speed of up to 260 times per second, the highest
  • The use of large-capacity industrial-grade cylindrical lithium polymer battery, you can use more than 48 hours
  • Dust shock and drop interference with high reliability 433 long-distance data transmission
  • Wireless base can use when stents can achieve continuous scanning gun features ​

Product Description

Products

       H018 wireless scanner with memory, can store more than 4,000 bar code data. You can set the working channel and scanner ID, ​​support for low-voltage prompts, automatic power saving feature. Reception function and charging base set of functions in one, supporting many, many-to-data processing. Suitable for warehouse management and out of inventory, logistics delivery, on various occasions supermarket cashier, manufacturing production lines.

Performance Parameters

Processor: NXP high-end decoder chip

Tip: LED and buzzer indication

Receiver Interface: USB

Scan Speed: 100 times / sec.

Scanning Parameters

Light Source: 650nm visible laser diode

Scan Type: Single scan

Scanning Angle: ± 50 °; ± 60 °; ± 40 ° (front, left, rotate)

Print Contrast: 35% minimum reflectance difference

Scan Angle: 65 ° elevation, 50 ° angle

Decoding Capabilities: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China postal codes.

Depth: 5mil: 35-110mm; 10mil: 15-280mm; 13mil: 20-320mm; 16mil: 35-360mm; 35mil: 150-625mm;

Minimum Resolution: 4mil (0.10mm)

Electrical Parameters

Power: 1200mAh lithium battery (built-in)

Standby Time: one month

Working Hours: 15 hours (continuous scan)

Wireless Standard: 433MHz ISM band

Communication Range: 300 meters (open viewing distance)

Related Certification: CE Class1: EN60825-1

Mechanical Parameters

Size: 160mm (L) × 65mm (W) × 85mm (H)

Weight: 200g

Receiver: 80mm (L) × 56mm (W) × 25mm (H)

Weight: 110g

Environmental Parameters

Operating Temperature: 0 ℃ to 50 ℃

Storage Temperature: -40 ℃ to 60 ℃

Humidity: 5% - 95% relative humidity (non-condensing)

Earthquake Resistance: can withstand 1.5 m air drops

Dust Resistance: sealing up to IP42

Illumination: 6,000LUX

Specifications of Wireless Laser Barcode Scanner with Charging Base Docking Station

  • Brand
    Wireless
  • SKU
    WI546ELAABC7FBANMY-23947525
  • Warranty Period
    1 Year
  • Warranty Type
    Local Supplier Warranty
  • Model
    H018 Wireless Laser Barcode Scanner with Charging Base Docking Station
What’s in the box
  • 1 x Wireless Laser Barcode Scanner with Charging Base Docking Station​
  • 1 x USB Cable
  • 1 x Manual Book
