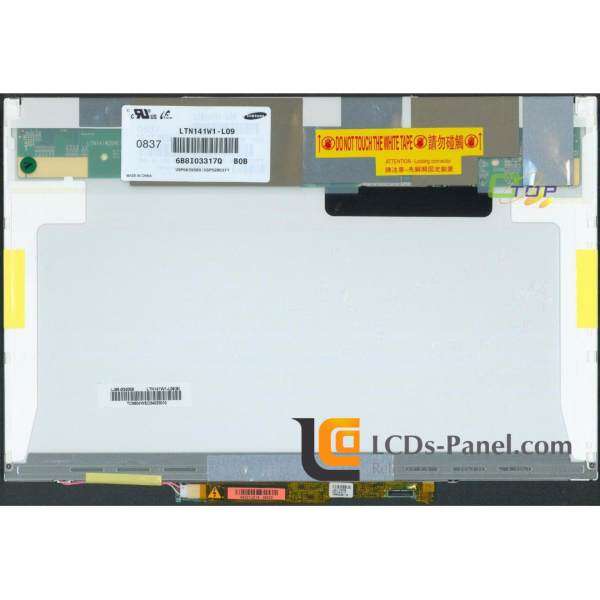

notebook LCD display LTN141W1-L09 Malaysia

notebook LCD display LTN141W1-L09 Malaysia

Category: Monitors
Status: In stock
RM 220.00
Payment on delivery
RM 220.00

RM 222.00

RM 223.50

Van chuyen don gianSimple shipping
San pham chat luong High quality products
Ban hang toan quoc Nationwide sales
Thanh toan khi nhan hang Simple shipping

  • LTN141W1-L09LTN141W1-L09 Basic InformationPanel Model/LTN141W1-L09Panel BrandSAMSUNGDescritiona-Si TFT-LCD ,14.1 inch, 1280×800Panel Typea-Si TFT-LCDOperating Temperature0 ~ 50 °CStorage Temperature-20 ~ 60 °CRemarksAttached Burst mode Inverter with Ambient Light SensorLTN141W1-L09 Mechanical FeaturesDot Resolution1280(RGB)×800 (WXGA)Pixel ConfigurationRGB Vertical StripePixel Density107 PPIAspect Ratio16:10 (H:V)Form FactorFlat Rectangle DisplayDot Pitch0.079×0.237 mm (H×V)Pixel Pitch0.237×0.237 mm (H×V)Weight405g (Typ.)(with inverter)SurfaceAntiglare (Haze 25%), Hard coating (3H)Active Area303.36×189.6 mm (H×V)Bezel Area306.7×192.85 mm (H×V)Outline Dimension319.5×218 mm (H×V)Outline Depth5.5 (Max.) mmShape StyleWedge (PCBA Bent, Depth ≥5.2mm)Holes & BracketsSide mounting holes (8-M2) on left, right bezel; 2 top teethLandscape or PortraitLandscape typeTouch PanelWithoutLTN141W1-L09 Optical FeaturesDisplay ModeTN, Normally White, TransmissiveBrightness220 cd/m² (Typ.)Contrast Ratio300 : 1 (Min.) (Transmissive)Display Color262K (6-bit)Color Gamut45% NTSC (CIE1931)Response Time25 (Typ.)(Tr+Td)Viewing Angle50/50/25/40 (Typ.)(CR≥10) (L/R/U/D)Viewing Direction6 o'clockWhite color ChromaticityWx:0.315; Wy:0.330White Variation2.20 (Max.)(13 points)Sunlight ReadableNLTN141W1-L09 Electronics FeatureVertical Frequency60HzReverse ScanNoLTN141W1-L09 Backlight SystemLamp PositionEdge light type (Bottom side)Lamp TypeCCFLLamp Amount1 pcsLamp ShapeStraightLamp Life Time15K(Typ.) (Hours)Lamp Voltage655V (Typ.)Lamp Current3.0/6.0/6.5mA (Min./Typ./Max.)Lamp Operating Frequency50/60/65KHz (Min./Typ./Max.)Lamp Startup Voltage1120/1345V (Max.)(Ta=+25/0℃)Lamps Power Consumption4.3W (Typ.)Interface TypeConnectorLamp Driver Board6.5W (Max.)LTN141W1-L09 Signal InterfaceSignal CategoryLVDSSignal ClassLVDS (1 ch, 6-bit)Input Voltage for Panel3.3V (Typ.)Input Current for Panel290mA (Typ.)Interface TypeConnectorSignal InterfaceJAE - FI-XB30SRL-HF11, Pitch:1.0 mm, Pin:30 pins

Specifications of notebook LCD display LTN141W1-L09

  • Brand
    LCD
  • SKU
    LC370ELABIIHPBANMY-117495320
  • Warranty Type
    No Warranty
  • Display Size
    14.1
  • Model
    LTN141W1-L09
What’s in the box

LCD screen


Official delivery unit
