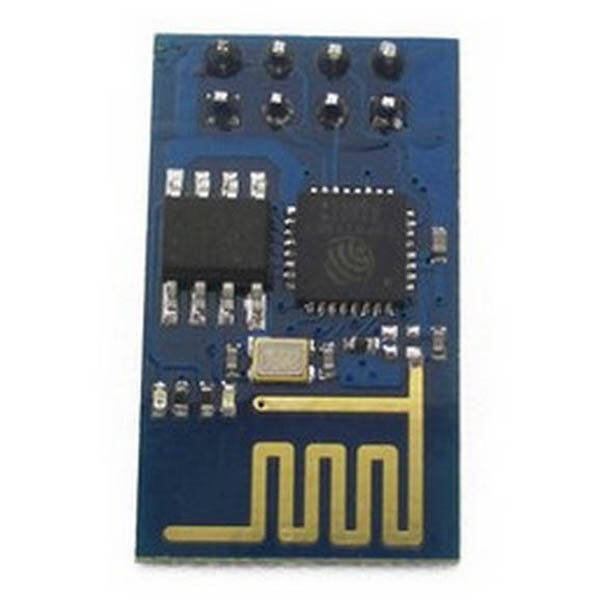

ESP8266 Serial Esp-01 WIFI Wireless Transceiver Module Receive AP+STA- Malaysia

ESP8266 Serial Esp-01 WIFI Wireless Transceiver Module Receive AP+STA- Malaysia

Category: Gadgets
Status: In stock
RM 14.24
Payment on delivery
RM 14.24

RM 16.24

RM 17.74

Van chuyen don gianSimple shipping
San pham chat luong High quality products
Ban hang toan quoc Nationwide sales
Thanh toan khi nhan hang Simple shipping

  • SDIO 2.0, SPI, UART
  • 32-pin QFN package
  • Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
  • Integrated RISC processor, on-chip memory and external memory interfaces

Description SDIO 2.0, SPI, UART 32-pin QFN package Integrated RF switch, balun, 24dBm PA, DCXO, and PMU Integrated RISC processor, on-chip memory and external memory interfaces Integrated MAC/baseband processors Quality of Service management I2S interface for high fidelity audio applications On-chip low-dropout linear regulators for all internal supplies Proprietary spurious-free clock generation architecture Integrated WEP, TKIP, AES, and WAPI engines

Solutions Supports APSD for optimal VoIP applications Patented spurious noise cancellation algorithm for integration in SOC applications Supports Bluetooth co-existence interface Self-calibrated RF to ensure optimal performance under all operating conditions Zero factory tuning No external RF components

Specifications: 802.11 b/g/n Wi-Fi Direct (P2P), soft-AP Integrated TCP/IP protocol stack Integrated TR switch, balun, LNA, power amplifier and matching network Integrated PLLs, regulators, DCXO and power management units +19.5dBm output power in 802.11b mode Power down leakage current of <10uA Integrated low power 32-bit CPU could be used as application processor SDIO 1.1/2.0, SPI, UART STBC, 1×1 MIMO, 2×1 MIMO A-MPDU & A-MSDU aggregation & 0.4ms guard interval Wake up and transmit packets in < 2ms Standby power consumption of < 1.0mW (DTIM3)

1. High quality & low price 2. LWIP agreement 3. Support 3 modes: AP, STA, AP+STA 4. Perfect and simple AT commands

Warnings: This module requires a 3.3 volt supply for VCC, and 3.3V logic. It is not 5V tolant. Connect RX or TX on 5V Arduino will destroy this module. You must use a logic level converter, or a 3.3V Arduino The 3.3V supply on the Arduino Uno has inadequate current capabilit to power this module. You must provide a separate, higher 3.3V supply(about 300mA or better) The ESP8225 module is very new on the market and support and documentation for it is currently very limited.    Package included: 1 x Wireless Transceiver Module

Specifications of ESP8266 Serial Esp-01 WIFI Wireless Transceiver Module Receive AP+STA-

  • Brand
    OEM
  • SKU
    OE702ELAAEMCZDANMY-30334767
  • Warranty Type
    No Warranty
  • Model
    X59BC4B1
What’s in the box
  • 1 x Wireless Transceiver Module
