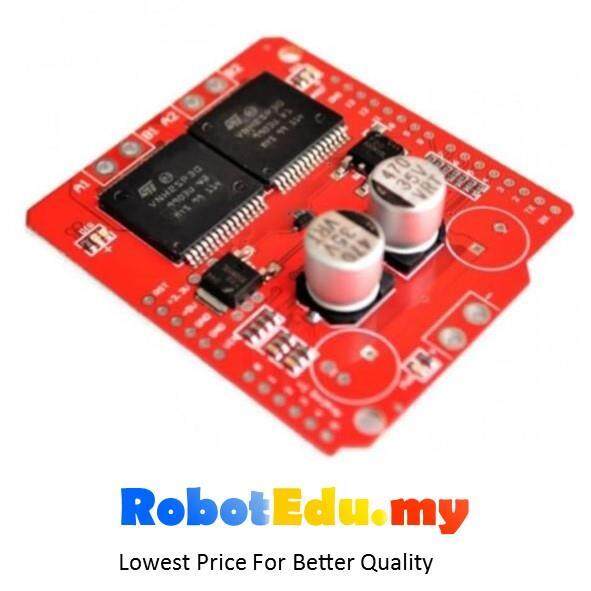

14A Monster Moto Motor Driver Controller Shield For Arduino ; Malaysia

14A Monster Moto Motor Driver Controller Shield For Arduino ; Malaysia

Category: Gadgets
Status: In stock
RM 47.10
Payment on delivery
Van chuyen don gianSimple shipping
San pham chat luong High quality products
Ban hang toan quoc Nationwide sales
Thanh toan khi nhan hang Simple shipping

  • Ready stock in Malaysia
  • 3 months Manufacturing defect warranty
  • Voltage: 5.5-16V
  • Maximum current rating: 30 A
  • Practical Continuous Current: 14 A
  • Current sensing available to Arduino analog pin
  • MOSFET on-resistance: 19 mΩ (per leg)
  • Maximum PWM frequency: 20 kHz
  • Thermal Shutdown
  • Undervoltage and Overvoltage shutdown



Monster Moto Shield Description: This is essentially a ramped up version of our Ardumoto motor driver shield. For this monster shield we've replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers. We've also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.

Note: When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system) However, when using the board at currents up to 6A the chips will barely become noticeably warm.cjmcu

Features:

Voltage: 5.5-16V Maximum current rating: 30 A Practical Continuous Current: 14 A Current sensing available to Arduino analog pin MOSFET on-resistance: 19 mΩ (per leg) Maximum PWM frequency: 20 kHz Thermal Shutdown Undervoltage and Overvoltage shutdown

Tutorial Reference: http://garagelab.com/profiles/blogs/tutorial-how-to-use-the-monster-moto-shield



Specifications of 14A Monster Moto Motor Driver Controller Shield For Arduino ;

  • Brand
    Arduino
  • SKU
    443398953_MY-656464345
  • Warranty Period
    3 Months
  • Warranty Type
    Local Manufacturer Warranty
  • Model
    Arduino-039
What’s in the box
1x 14A Monster Moto Motor Driver Controller Shield For Arduino
